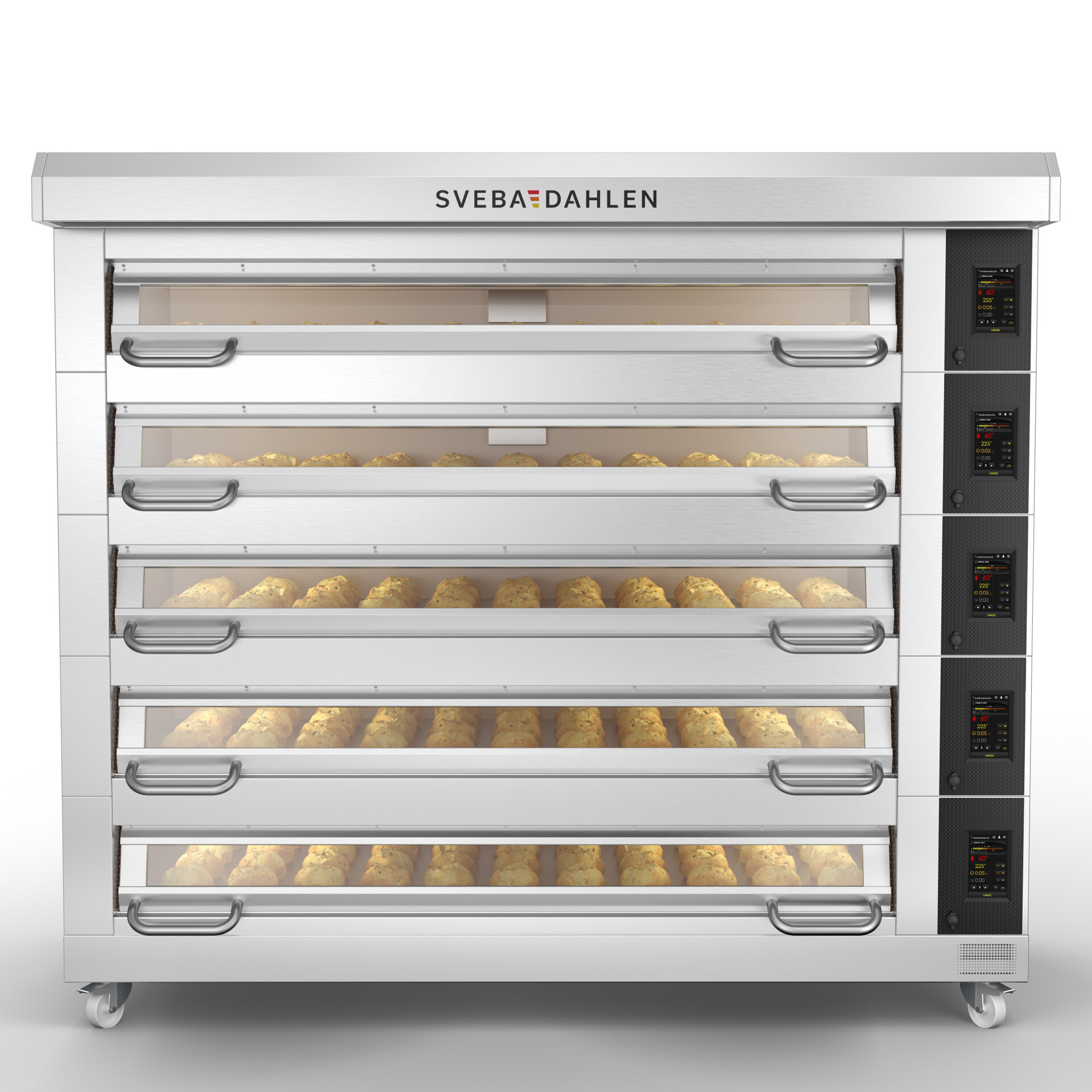

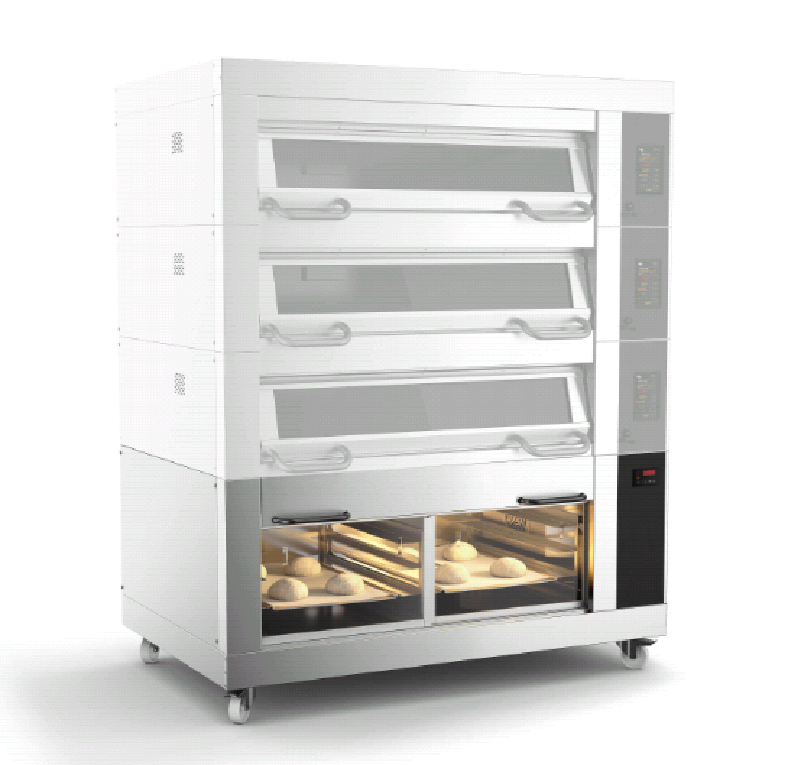

Deck oven
Classic is an attractive deck oven for bakes who want to bake in a genuinely traditional way the most modern techniques.
Suitable for various sizes of baking trays and bread.
The flexible modular design comes in five different sizes with multiple expandable options.
Top heat, bottom heat, and steam can be controlled independently.
Made of stainless steel.
Quick start.
Well-insulated oven chamber.
High-efficiency steam system.
Stone slab bottom.
Each layer is equipped with a timer.
Layer height: 160mm or 220mm.
Maximum temperature: 330℃.

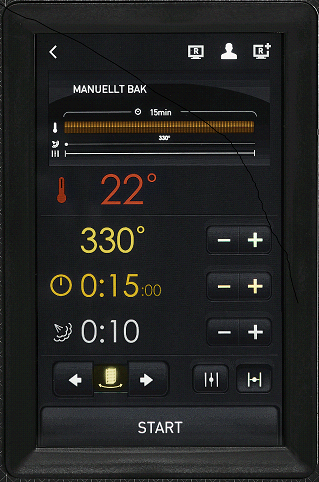

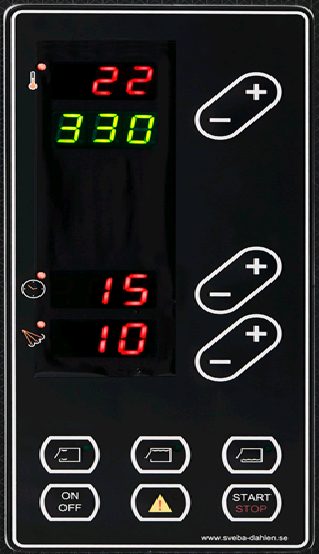

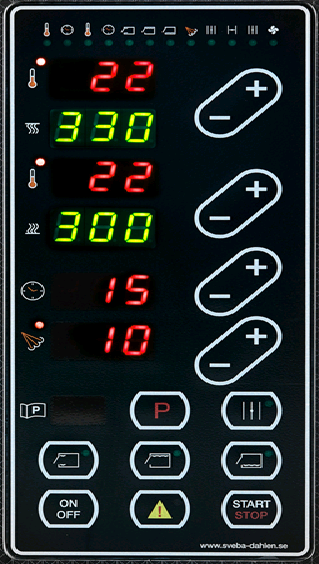

Standard Control Panel D1+ Control Panel Touchscreen control panel
Dimensions
D1 | D2 | D2E | D3 | D4 | |
Max.tary size / mm | 600*800 | 2*470*800 | 2*600*800 | 3*470*800 | 4*470*800 3*600*800 |
External dimensions / mm | 850*820 | 950*820 | 1265*820 | 1580*820 | 1895*820 |
Baked surface / mm | 945*804 | 945*804 | 1260*804 | 1575*804 | 1890*804 |
EI.Load / kw | 5.0 | 6.9 | 8.8 | 10.7 | 12.6 |
Classic under built prover DJ
Classic under built prover
Powerful Insulation
Made of Stainless Steel
Two Height Options Available
Automatic Water Supply Device

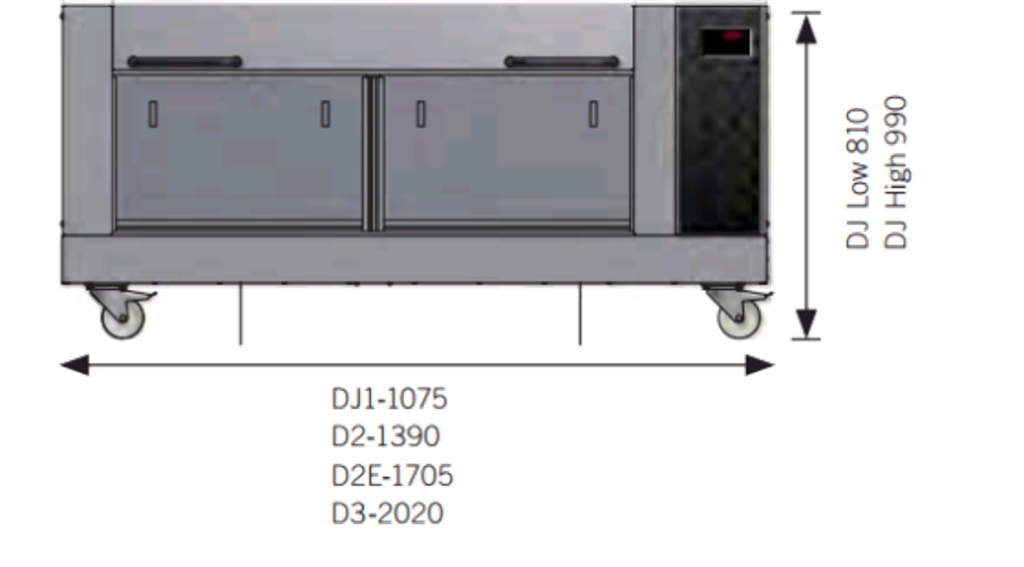

Dimensions
Model | DJ1 D1 | DJ2 D2 | DJ2E D2E | DJ3 D3 |
power KW | 1.8 | 1.8 | 1.8 | 1.8 |
Classic under built prover DJ Nu.of trays 4 trays, height 560mm | 1*4 tarys | 2*4 tarys | 2*4 tarys | 3*4 tarys |
Classic under built prover DJ Nu.of trays 6 trays, height 740mm | 1*6 tarys | 2*6 tarys | 2*6 tarys | 3*4 tarys |
